KDM-8206
Modular rack-mounted multi-channel position sensing system

> Modularized rack format
> Standard 3U by 7T Eurocard modules
> Resolution to 10 microinches or better
> Multiple channels, rack mounted or bench-top enclosures
> 21 standard temperature sensors and 10 moderate temperature sensors.

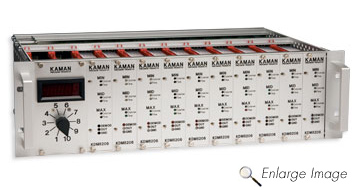

KDM-8206 phots

  • KDM-8206 DATA SHEET PDF
  • KDM-8206 MANUAL PDF
  • 3D MODEL
  • SPECS
  • SENSORS
  • CERTIFICATIONS
  • OPTIONS
  • ACCESSORIES

KD-2306 Data SheeticonKDM-8206 Data Sheet.pdf

















Electronics
IGS format
STEP format
19 Inch rack with display
19 Inch rack without display






Technology Inductive bridge
Size One 7T slot wide
Power supply Voltage ±15 Vdc
Regulation ±0.5 Vdc
Current <50 mA per side
Output signal 0-10 Vdc analog voltage standard
4-20mA current
Resolution 0.0 1% of FS
Nonlinearity < 1% of FS
Target materials Ferrous and non-ferrous (ferrous
standard - 4130 steel, nonferrous
standard - 6061 T6 aluminum, other
materials optional
Frequency response 50 KHz (-3db) standard
100 Hz to 120 KHz optional
Thermal sensitivity 0.1% of FS per °F
0.02% of FS per °F with factory
temperature compensation
(0.05%FS/°F for .5U2)
Operating temperature
measuring channel
+32°F to +132°F (0°C to +55°C)
Storage temperature
measuring channel
-67°F to +220°F (-55°C to +105°C)



KDM - 8206 INDIVIDUAL SENSOR PERFORMANCE SPECIFICATIONS

Sensor
click to view
Standard Measuring Range Target Material Static Resolution Single (S) or Dual (D)Coil Shielded (S) or Unshielded (U) Operating Frequency Standard Cable Length Integral (I)
or
Removable (R)
  inch mm non-fer ferrous μ in μ m
STANDARD TEMPERATURE SENSORS: –67° TO +220° F (–55° TO +105° C)

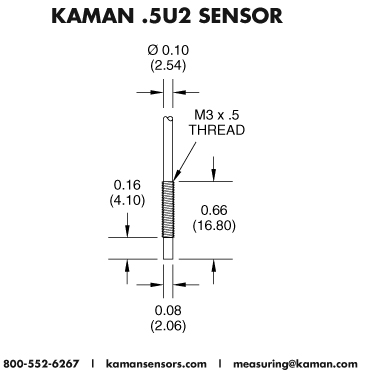

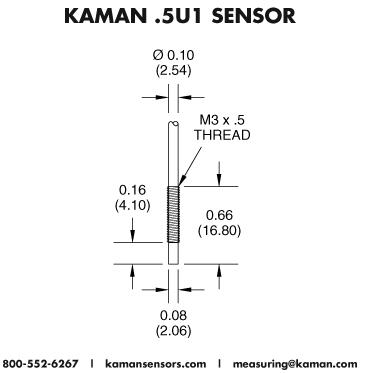

.5U1/.5U2 0.020 0.5 .5U1 .5U2 4 0.1 S U 1 MHz 10 ft I

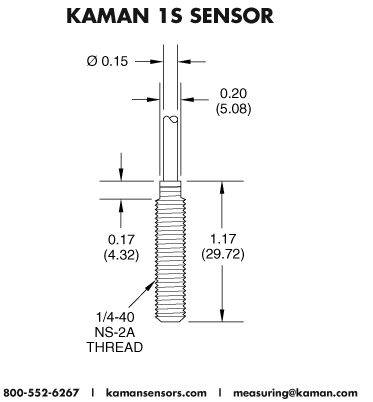

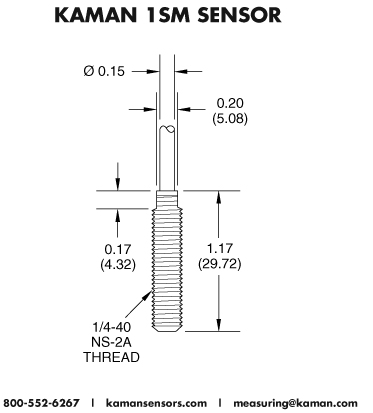

1S /1SM 0.040 1.0 1S 1SM 4 0.1 D S 1 MHz 10 ft I
1U1 0.040 1.0   4 0.1 S U 0.5 MHz 10 ft I

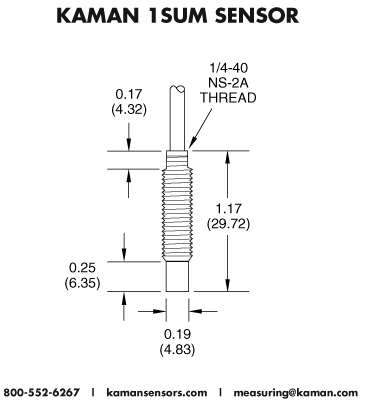

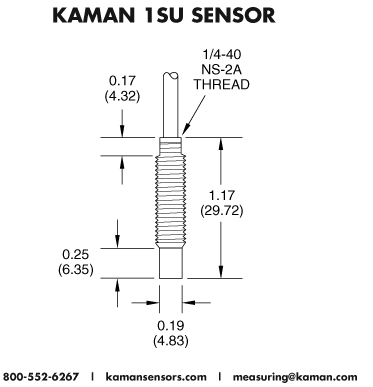

1SU/ 1SUM 0.050 1.3 1SUM 5 0.1 D U 1 MHz 10 ft I
2S1 0.080 2.0 * 8 0.2 S S 0.5 MHz 10 ft R
2UB1 0.080 2.0 * 8 0.2 S U 0.5 MHz 10 ft I
2S 0.100 2.5 10 0.3 D S 1 MHz 10 ft I
3U1 0.120 3.0 * 12 0.3 S U 0.5 MHz 10 ft R
4S1 0.160 4.0 16 0.4 S S 0.5 MHz 10 ft R
4SB 0.160 4.0 * 16 0.4 S S 0.5 MHz 10 ft I
6U1 0.240 6.0 24 0.6 S U 0.5 MHz 10 ft R
6C 0.250 6.4 25 0.6 D S 1 MHz 10 ft R
8C 0.500 13 50 1.3 D S 1 MHz 15 ft R
15U1 0.600 15 * 60 0.2 S U 0.5 MHz 15 ft R
15U2 1.000 25 100 2.5 D U 1 MHz 15 ft R
30U1 1.200 30 120 3.0 S U 0.5 MHz 15 ft R
30U2 2.000 50 200 5.0 D U 1 MHz 15 ft R
60U1 2.400 60 240 6.0 S U 0.5 MHz 15 ft R



MODERATE TEMPERATURE SENSORS: CRYOGENIC TO +400° F (+200° C), SENSOR DEPENDENT
1UEP 0.040 1.0 4 0.1 D U 1 MHz 10 ft I
2SMT 0.100 2.5 10 0.3 D S 1 MHz 10 ft I
6CMT 0.250 6.4 25 0.6 D S 1 MHz 15 ft I
8CMT 0.500 13 50 1.3 D S 1 MHz 15 ft I
9U 0.160 4.0 16 0.4 S U 1 MHz 6.6 ft I
12U 0.200 5.0 20 0.5 S U 1 MHz 6.6 ft I
16U 0.320 8.0 32 0.8 S U 1 MHz 6.6 ft I
26U 0.500 12 50 1.2 S U 1 MHz 6.6 ft I
38U 0.750 20 75 2.0 S U 1 MHz 6.6 ft I
51U 1.000 25 100 2.5 S U 1 MHz 6.6 ft I

Reference Sensors Data Sheet for dimensional information
* Must specify actual target material. Performance specifications may change.





DECLARATION OF CONFORMITY

Model Number
KDM-8206 Modular rack-mounted multi-channel position sensing system

Manufacturer
Kaman Precision Products
Measuring & Memory Systems
217 Smith Street
Middletown, CT 06457
USA
Telephone 860-632-1000
Fax 860-632-4515

Conforms with Applicable Standards of:
Council Directive 89/336/EEC as amended by Council Directive 92/31/EEC (EMC Directive)
Council Directive 73/23/EEC as amended by Council Directive 93/68/EEC (LVD Directive)

EMC
EN 61326 1998 Electrical Equipment for Measurement, Control and Laboratory Use – EMC Requirements

LVD
EN 61010-1:2001 The KD-2446 unit requires the use of a limited energy power supply circuit per EN 61010-1:2001 Article 9.3. The KD-2446 does not use or switch voltages in excess of 60 VDC or 42.4 VAC peak (30 VAC rms).






Many options are available to customize a standard system to meet the exact needs of the application. The most popular are:

Sensor Cables

Sensor cable extension
Most sensors can handle longer cable lengths, although increasing the cable length can and will affect some performance specifications. Shorter than standard cable lengths are also available. Call an apps engineer to discuss your particular requirements.

In-line cable connector splice
Many sensors come with integral sensor cables. Routing this cable in some applications is difficult and something you only want to do once. Including an in-line connector splice in the cable, near the sensor itself, allows for easy sensor replacement should the need arise.

Hermetic in-line connector splice
Some applications pass the sensor through a pressure boundary, most commonly a vacuum chamber wall. We offer an in-line hermetic bulkhead splice for these applications.

Special Calibrations

Range
Standard published ranges are based on meeting a set of performance specs. Custom calibrations are possible to meet specific application needs. Contact a Kaman applications engineer if a custom calibration is desired.

Target material
Unless otherwise specified, nonferrous systems will be calibrated with an aluminum target, ferrous systems will be calibrated with a 4130 steel target. If your target material is significantly different in conductivity and/or permeability it may be best to calibrate using the same material as your target.

Temperature compensation
When the standard thermal sensitivity of 0.1%FS/°F is not enough, a temperature compensated calibration can be performed that will improve the thermal sensitivity to 0.02%FS/°F. This is accomplished over a customer specified 100°F range with the upper limit of that range <150°F. Larger ranges and higher temperatures are also possible on a best effort basis.

Output
Besides the standard 0-10VDC output, the KD-2306 offers a 4-20mA output and a differential 0-10VDC output.

Log Amp Bypass
When extremely short range calibrations are required/desired, bypassing the log amplifier reduces noise improving performance.
