SMT-9700
Flexible, high-resolution position/displacement system for OEM applications
- Nanometer to sub-nanometer resolution
- 1, 2, and 3 channel configurations
- Proprietary Pulse Width Modulation (PWM) circuitry for an inherently low noise floor
- Small package size, ideal for OEM integration
- Thirteen standard sensor options
- Easy, cost-effective performance customization — sensor type/configuration, cable length, calibration range/offset, linearity, bandwidth, and temperature
- 3-channel option tunes all channels off the same frequency, saving mounting cost and machine space
- Requires only a single-ended power supply
- 18-pin SIP (Single In-line Package) cards available for OEM integration
- CE and RoHS compliant
Specifications
| Resolution | Nanometer to sub-nanometer (application dependent) |
|---|---|
| Channels | 1, 2, or 3 |
| Circuit | Proprietary Pulse Width Modulation (PWM) |
| Electronics operating temperature | 0°C to +70°C (+32° to +158°F) |
| Storage temperature | -40°C to +85°C (-40° to +185°F) |
| Compensation range | +15°C to +55°C (+59° to +131°F) |
| Sensor operating temperature | Cryogenic to +400°F (+200°C), sensor dependent |
| Analog output | Continuous load current <20 mA; short-circuit and overload protected; ranges 0-10, ±5, ±2.5 V |
| Input | 15 to 30 Vdc; current limit <50 mA; reverse-polarity and short-circuit protection |
| Compliance | CE and RoHS; I/O cables limited to 3 m to maintain CE marking |
Sensors
Certifications
DECLARATION OF CONFORMITY
Model Number

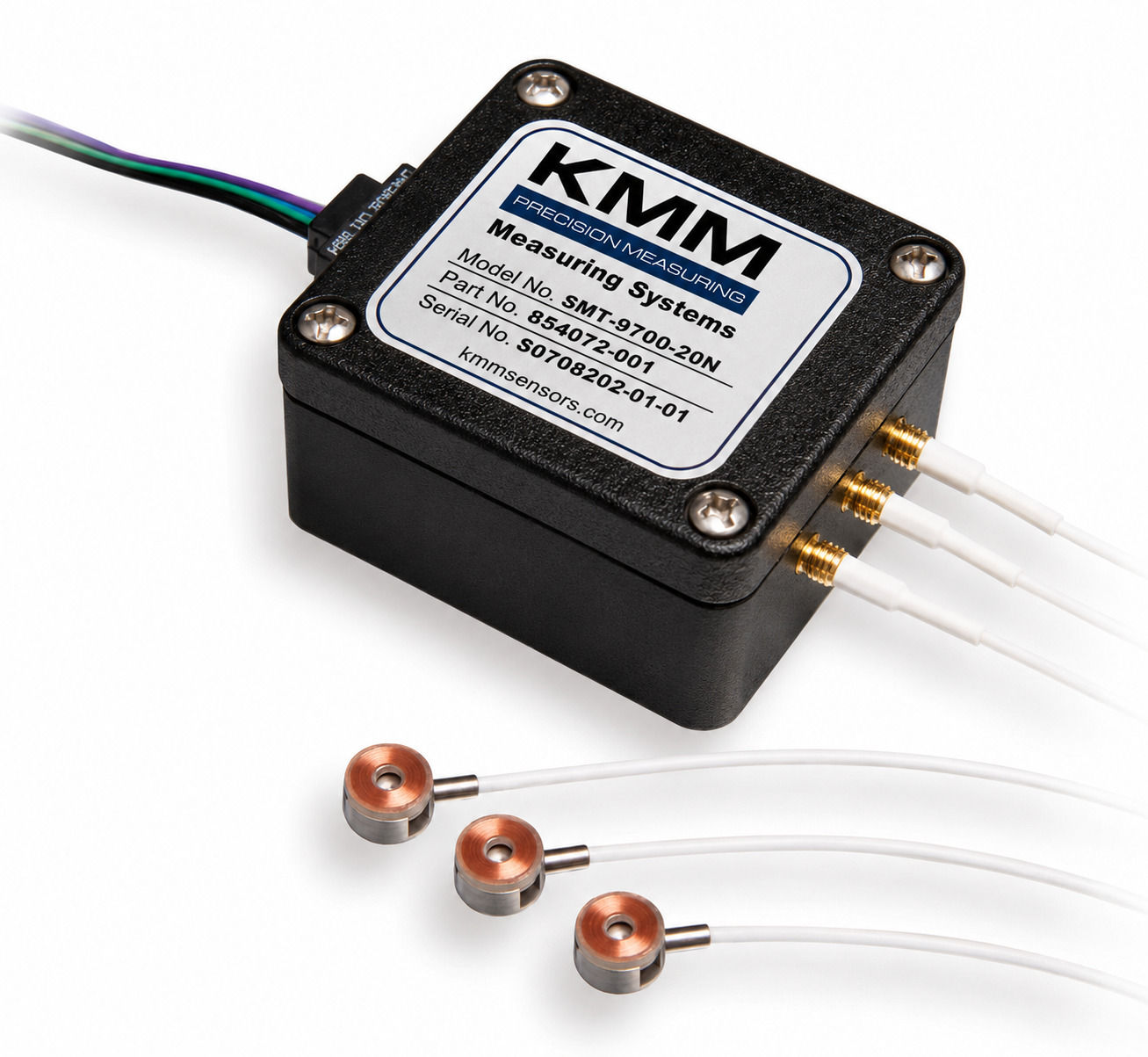

SMT-9700 non-contact high-precision analog position measuring system
Conforms with Applicable Standards of:
Council Directive 89/336/EEC as amended by 92/31/EEC (EMC Directive)
Council Directive 73/23/EEC as amended by 93/68/EEC (LVD Directive)
EMC
EN 61326:2005 — Electrical Equipment for Measurement, Control and Laboratory Use
Lead-free, RoHS compliant, CE Marked design.
Options
Accessories
Sensors, cables, and mounting hardware are available. Contact an applications engineer for configuration.
Frequently Asked Questions
What resolution does the SMT-9700 achieve?
Nanometer to sub-nanometer resolution, depending on the sensor, configuration, and calibration. Its proprietary PWM (phase-detection) circuit gives an inherently low noise floor compared with amplitude-based systems.
What channel configurations are available?
1, 2, or 3 channels. With the 3-channel option, all channels run off the same frequency and tune together — reducing mounting costs and machine space.
What are typical SMT-9700 applications?
XYZ stage position feedback in atomic force microscopy, Z-axis feedback in semiconductor photolithography, spindle position in precision grinding of bearing races, and optics positioning.
